H SERIES HGL TYPE Swivel Single bearing Plate Type
HGL-32GNB
| 【Wheels】 | ||
|---|---|---|
 GNB Reinforced nylon wheel |
||
| Product number | Wheel diameter | Wheel width | Mounting height | Overall height | Mounting base | Mounting dimensions | Hole diameter | Eccentricity | Turning radius | Allowance load | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D(mm) | (mm) | H(mm) | (mm) |
A×B (mm) |
X×Y (mm) |
P(mm) | E(mm) | (mm) | (daN) | (kgf) | ||
| HGL-32 | GNB | 32 | 21 | 30 | 46.5 | 70×70 | 55×55 (53×53) |
6.2 | 22 | 29 | 120 | 122.4 |

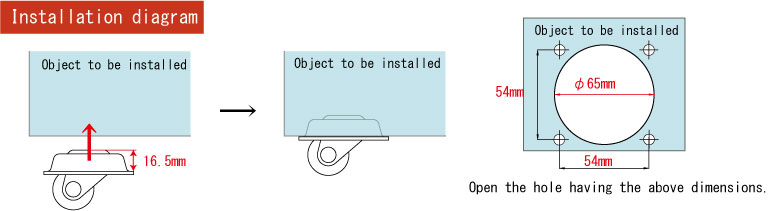

- ※Install a caster in such a manner that the caster is embedded in the product.
- ※Dimensions of the portion in which the caster is embedded is as follows: Height: 16.5mm or higher, Hole diameter: φ65mm
