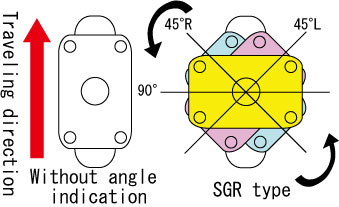

S SERIES SGR TYPE
Fixed wheel Plate Type
SGR-75UR-P55x42-45L
.gif)
| 【Wheels】 | |||
|---|---|---|---|
 RH Rubber wheels |
 NR Rubber wheels with nylon wheel assembly |
 NRB Rubber wheels with nylon wheel assembly(including B) |
 N Nylon wheel |
 UR Urethane wheel with nylon wheel assembly |
 UHF Urethane wheel with nylon wheel assembly (including B) |
 EL Elastomer wheel |
|
| Product number | yWheel diameter | Wheel width | Mounting height | Mounting base | Mounting dimensions | Hole diameter | Eccentricity | Turning radius | Allowance load | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D(mm) | (mm) | H(mm) | A×B(mm) | X×Y(mm) | P(mm) | E(mm) | (mm) | (daN) | (kgf) | ||
| SG-75 | RH | 75 | 25 | 93 | 70×58 | 55×42 | 8.8 | 28 | 66 | 60 | 61.2 |
| NR | 27 | 60 | 61.2 | ||||||||
| NRB | 60 | 61.2 | |||||||||
| N | 25 | 80 | 81.6 | ||||||||
| UR | 26 | 70 | 71.4 | ||||||||
| UHF | 70 | 71.4 | |||||||||
| EL | 27 | 50 | 51.0 | ||||||||
| SG-100 | RH | 100 | 25 | 122 | 70×58 | 55×42 | 8.8 | 31 | 82 | 50 | 51.0 |
| NR | 27 | 60 | 61.2 | ||||||||
| NRB | 60 | 61.2 | |||||||||
| N | 25 | 60 | 61.2 | ||||||||
| UR | 28 | 60 | 61.2 | ||||||||
| UHF | 60 | 61.2 | |||||||||
| EL | 27 | 50 | 51.0 | ||||||||
- ● For nylon wheels, black wheels can be manufactured.
- ● Conductive rubber wheel can be manufactured.
- ● For casters having wheel diameter of φ100, the antistatic urethane wheel can be manufactured.
- SG type and SR type can be shared.
- ☆ Patent Pending No.2010-083458
